    The Types Element

    You use the Types element to specify the XML Schema (xsd:schema) that is used to describe the structure of a WSDL Part.

    A WSDL document can have only one Types element; it must be named "types."

    How to Create a Types Element

    To create a Types element:
    1. Select the Definition (root) element.
    2. Select Diagram > Add > Types from the Stylus Studio menu.

    Alternative: Right-click the Definition element and choose Add > Types from the shortcut menu.

    Stylus Studio adds a Service element to the WSDL.

    Types Element Properties

    The Types element has no editable properties.

    Adding a Schema Element

    Once you add the Types element to the WSDL, you then add one or more Schema elements. A Schema element represents an XML Schema, and is created using the xsd namespace by default:

     <wsdl:types>
        <xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"/>
 </wsdl:types>

    Once it is part of the WSDL definition, you work on a Schema element as if it were an XML Schema in Stylus Studio. For example, you can either define the XML Schema's elements, attributes, global types, and so on directly in the WSDL, as shown in Figure 414, or you can use the Schema element to reference existing XML Schemas (Diagram > Reference Schemas).

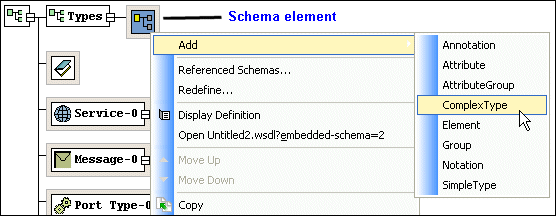

    Figure 414. XML Schema Editing Features Available for Schema Elements

    See Working with XML Schema in Stylus Studio for more information about creating XML Schema elements from scratch. See Referencing External XML Schemas to learn about importing and including existing XML Schemas.

    How to Create a Schema Element

    To create a Schema element:
    1. Select the Types element.
    2. Select Diagram > Add > Schema from the Stylus Studio menu.

    Alternative: Right-click the Types element and choose Add > Schema from the shortcut menu.

    Stylus Studio adds a Schema element to the WSDL.

    Schema Element Properties

    See About xsd:schema Properties for more information.
